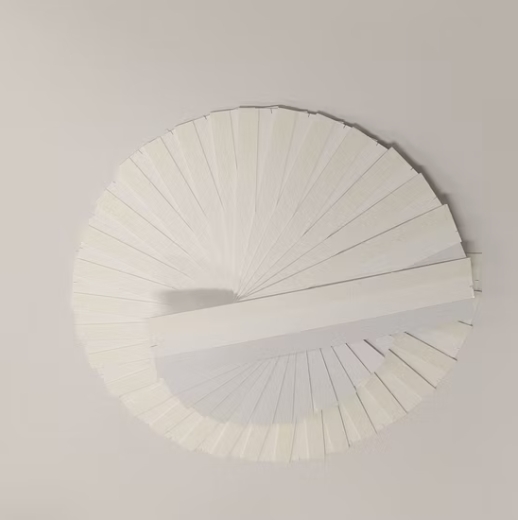

Nitrocellulose Membrane
Nitrocellulose membrane (NC membrane) is the core carrier of the colloidal gold test and the most important consumable in immunoassays. Through continuous optimization of surface chemical composition and unique production process, BSK Basic® NC membrane shows high intra- and inter-lot consistency. Now our membranes are widely used in immunodiagnosis, agriculture, food and environmental science, etc.
Features and Benefits
Quality Stability:
Excellent performance achieves reliable quality;
High protein binding;
High stability in capillary flow time;
High consistency of inter- and intra- lot.
Reliable Supply:

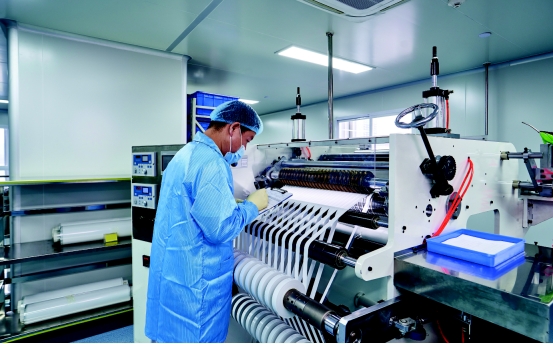

500,000-roll annual production capacity ensures reliable supply;
Complete traceability;
Convenient and timely after-sales management.
Wide Applications:
Applicable in various fields such as Immunodiagnostics, food safety, agriculture and etc;
Large-scale availability;
Rapid customization for production and application requirements.
High Consistency of Membrane Surface:
Stereoscopic microporous matrix allows liquid to flow in all directions;
Smooth membrane surface for clearer color display.
Specification
Model | Capillary Flow Rate [s/4cm) | Pore Size [μm] | Thickness (with backing)[μm] |
HPI95 | 100±20 | 12-15 | 135±25 |
HPI110 | 120±30 | 8-12 | 135±25 |
HPI140 | 140±30 | 5-8 | 135±25 |
HPI160 | 160±30 | 4-6 | 135±25 |
Applications | Lateral flow assays for Veterinary Diagnostics, Cardliac Markers, Infectious Diseases, Int lammation, Fertility,Thyroid Function, Renal Function, Tumor Markers, Drugs of Abuse, Environmental and Agricultural Pollution,Food Safety and more. |

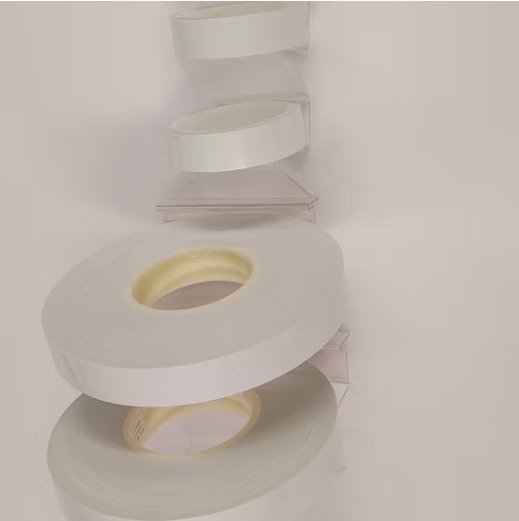

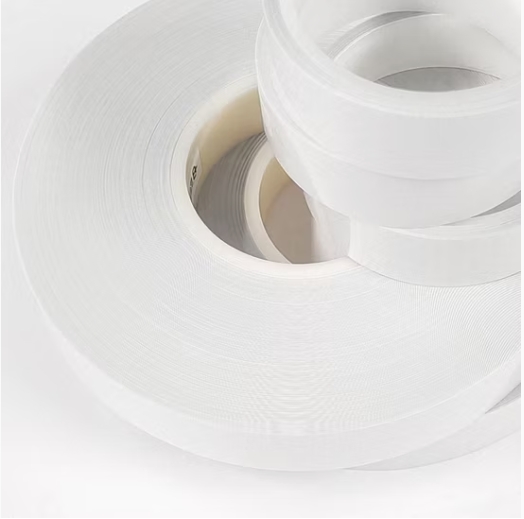

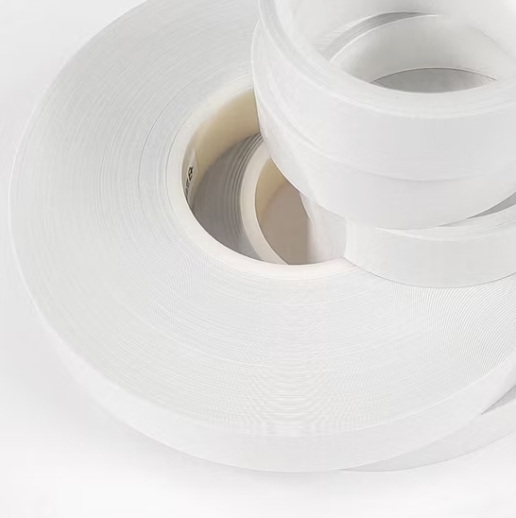

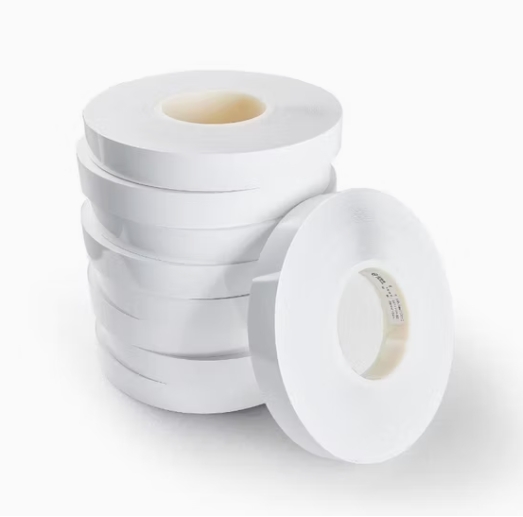

Dimensions | 20mm/25mm*100m (Other dimension can be customized accordingly) |
Storage Conditions | Temperature: 10 °C-30°C Humidity: 30%-80% R.H Keep sealed, avoid direct sunlight, keep away from organic solvents |
